Animal Pet Feed Maker Press Mill Floating Catfish Fish Feed Making Production Processing Extruder Pellet Machine
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | MIKIM |
| 証明: | CE |
| モデル番号: | MK-100 / MK-300 |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | US$1,590.00 - 2,490.00 |
| パッケージの詳細: | 140.00cm * 110.00cm * 90.00cm |
| 支払条件: | L/C、D/A、D/P、T/T |
| 供給の能力: | 30 |
|
詳細情報 |
|||
| 力: | 5.5kW | タイプ: | 押出機 |
|---|---|---|---|
| アプリケーション: | ペットフード生産 | 食品材料: | 肉、豆、野菜など |
| 労働者が必要です: | 1〜2人の労働者 | 特徴: | 連続および自動 |
| 電圧: | 380V | アドバンテージ: | パッキングマシンと簡単に接続します |
| 機械名: | ドライドッグフード製造機 | 式: | 自由に方式を提供しなさい |
| モーター: | 中国のブランド、シーメンス、ABB | ||
| ハイライト: | floating catfish feed extruder machine,pet feed pellet making machine,fish feed production processing extruder |
||
製品の説明
Animal Pet Feed Maker Press Mill Floating Catfish Fish Feed Making Production Processing Extruder Pellet Machine
Product Description
Introduction about the floating fish feed pellet machine:
The raw materials can be wheat, soybean, cake and other leftovers etc.
The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.
Key Features
- The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
- The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
- In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
- The main bearing is from Japanese and Sweden bearing to ensure its safety. The main motor is Y-Series three phrase industrial pure copper motor.
- The floating pellets will float on the water for about 12 hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.

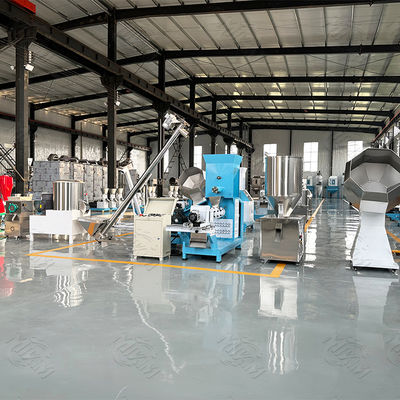

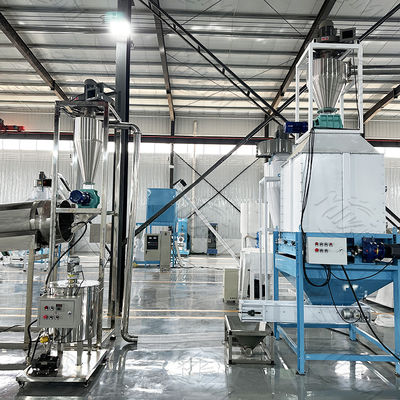

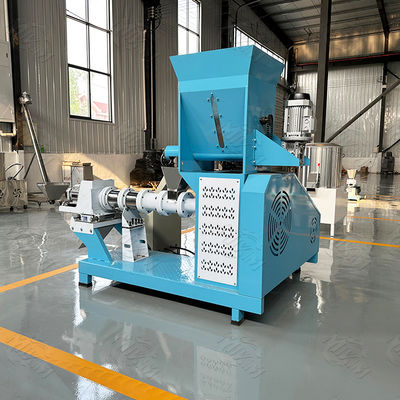

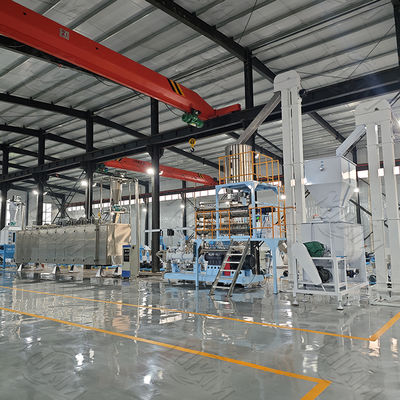

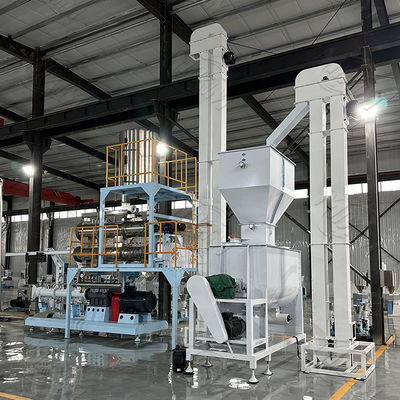

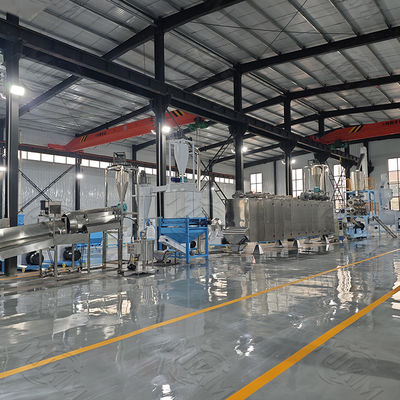

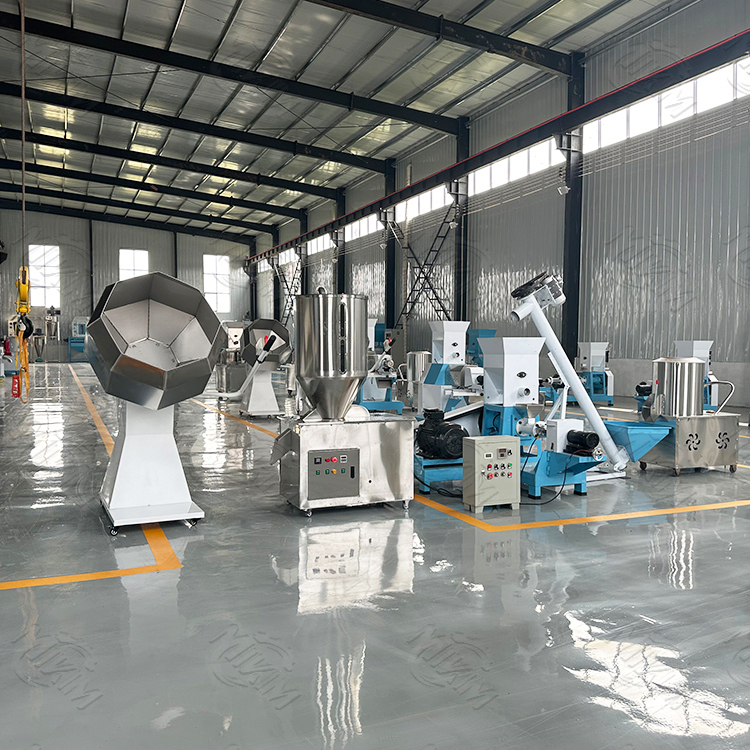

Product Images
Technical Specifications
| Model | DGP40-C | DGP50-C | DGP60-C |
|---|---|---|---|
| Power (KW) | 5.5kw | 7.5+0.4kw | 15+0.4 |
| Capacity (kg/h) | 30-40 | 60-80 | 120-150 |
| Weight(kg) | 350 | 400 | 450 |
| Machine size (mm) | 1350*1030*840 | 1470*1110*850 | 1470*1140*840 |
| Model | Capacity/t/h | Power/kw | Feed power/kw | Diameter/mm | Cutting power/kw | Size(mm) |
|---|---|---|---|---|---|---|
| DGP40-C | 0.03-0.04 | 5.5 | 0.4 | Φ40 | 0.4 | 1350*1030*840 |
| DGP50-C | 0.06-0.08 | 7.5-11 | 0.4 | Φ50 | 0.4 | 1470*1110*850 |
| DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 | 1470*1140*840 |
| DGP70-B | 0.18-0.2 | 18.5 | 0.4 | φ70 | 0.4 | 1790*1470*940 |
| DGP80-B | 0.2-0.25 | 22 | 0.4 | φ80 | 0.6 | 1850*1470*950 |
| DGP90-B | 0.32-0.35 | 37 | 0.6 | φ90 | 0.8 | 2300*1640*1000 |
| DGP120-B | 0.5-0.6 | 55 | 1.1 | φ120 | 2.2 | 2350*2010*1110 |
| DGP135-B | 0.7-0.8 | 75 | 1.1 | φ133 | 2.2 | 2450*2040*1200 |
| DGP160-B | 1-1.2 | 90 | 1.5 | φ155 | 2.2 | 2550*2100*1300 |
| DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0 | 2650*2240*1400 |
