Manufacture of Fish Food Extrusion Production Line Extruded for Fish Feeds Twin Screw Professional Fish Food
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | MIKIM |
| 証明: | CE |
| モデル番号: | DGP-100、DGP-120、DGP-135、DGP-160、DGP-200 |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | $8500.00 - 55000.00/ Set |
| パッケージの詳細: | 容器によって木の輸出パッケージかローディングによって詰められる |
| 受渡し時間: | 7-10営業日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 1か月あたり300セット |
|
詳細情報 |
|||
| ハイライト: | twin screw fish food extruder,fish feed production line,professional extruded fish feed machine |
||
|---|---|---|---|
製品の説明

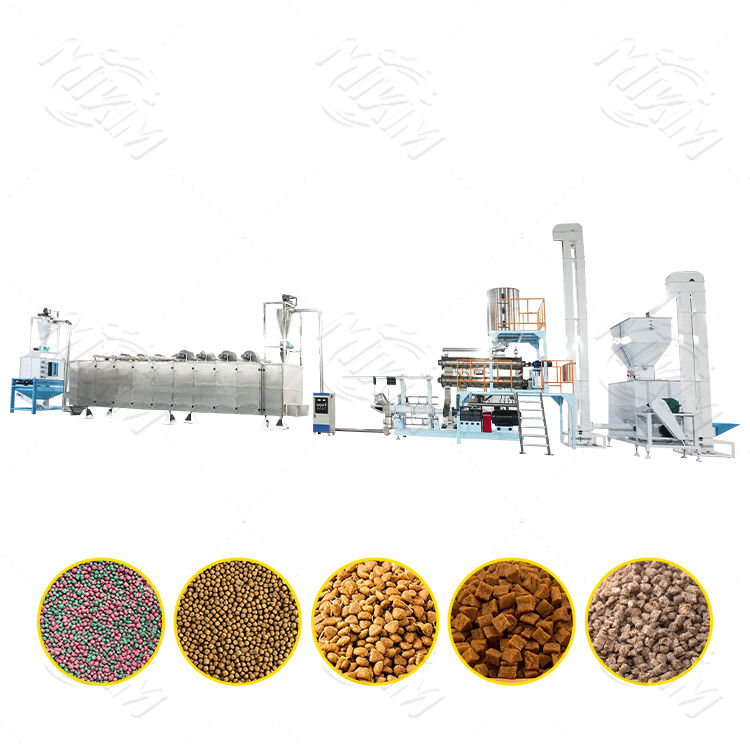

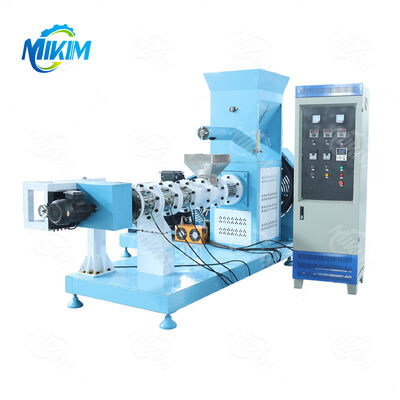

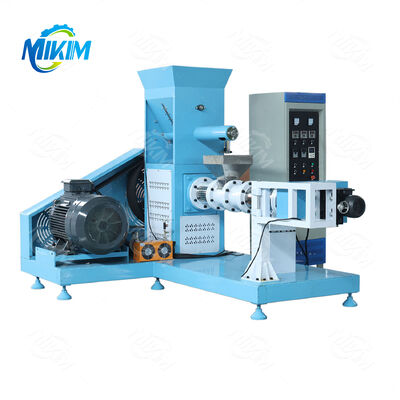

Twin screw fish feed extruder, also called floating fish feed machine, is widely used for produce high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, etc. We have two types of fish feed extruder, dry type and wet type model fish feed machine, through feeding materials, extruding, forming, filling and cutting, drying, oil spraying, packing to produce floating and sinking fish feed pellets automatically. Moreover, you can change extrusion degree to influence floating time.
- Grinding
- Mixing
- Extruding
- Drying
- Flavoring
- Cooling
- Packaging
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity(kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main motor(kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter motor(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw diameter(mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine size(m) | 2 * 2.8 * 1.2 | 2.2 * 2.9 * 1.2 | 2.2 * 3.1 * 1.37 | 2.3 * 3.15 * 1.38 | 2.35 * 3.45 * 1.65 |
| Weight(kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
As a reputable brand deeply rooted in the industry, MIKIM Machinery's entire line of equipment has passed CE and ISO international certifications. Its quality standards are benchmarked against advanced global levels. Whether it is material selection, process details or performance parameters, it strictly follows industry norms. With authoritative certifications, it safeguards customers' production and operation and reduces compliance risks.
The price ranges from approximately $8,500-$35,000
Yes, we offer comprehensive after-sales maintenance services to our customers.
