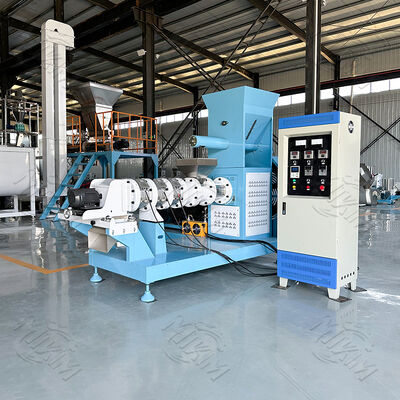

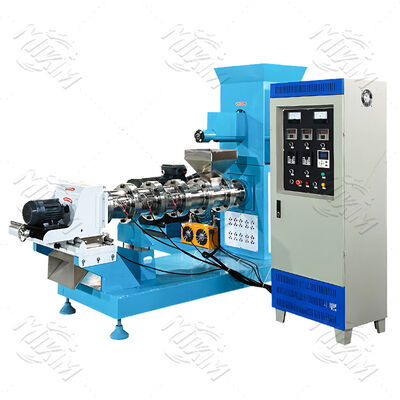

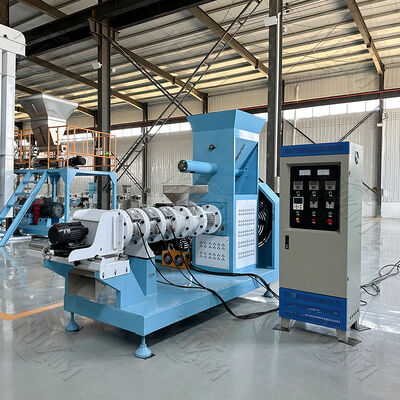

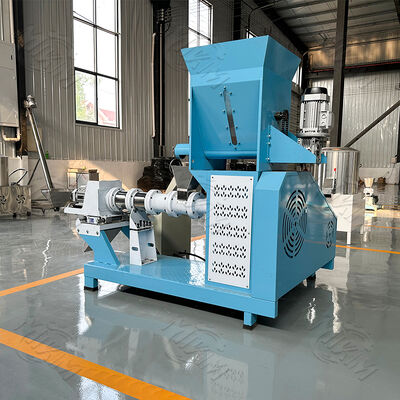

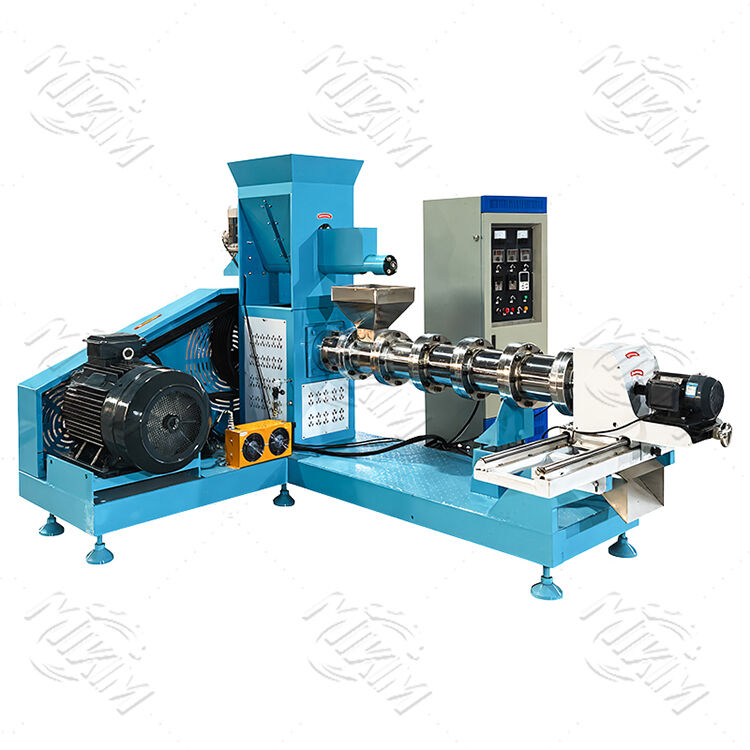

High efficiency and cost-effective Factory Price Dry Type Fish Feed Extruder Pellet Making Floating Fish Feed Extruder
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | MIKIM |
| 証明: | CE |
| モデル番号: | DGP-40、DGP-60、DGP-70、DGP-85、DGP-90 |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | $1500.00 - 35000.00/ Set |
| パッケージの詳細: | 木製輸出パッケージで梱包またはコンテナで積み込み |
| 受渡し時間: | 7～10営業日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月300セット |
|
詳細情報 |
|||
| カビ: | さまざまな形を選択できます | 食品材料: | 肉、豆、野菜など |
|---|---|---|---|
| スペアパーツ: | 1セット | 手術: | 簡単自動運転 |
| モーター: | 中国のブランド、シーメンス、ABB | 処理タイプ: | 押し出し |
| inveter: | ABB | ||
| ハイライト: | dry type fish feed extruder,floating fish feed pellet machine,factory price pet food extruder |
||
製品の説明
High Efficiency and Cost-Effactory Dry Type Fish Feed Extruder
Electric Fish Feed Extruder Machine
Our advanced electric fish feed extruder machine offers superior performance and reliability for aquaculture feed production.
- Variable frequency feeding device with speed adjustment prevents hopper reef knots and ensures precise feeding
- Minimal residual material with easy cleanup and maintenance
- Novel design with simple structure for easy operation and parts replacement
- Primarily used for extruding corn, soybean and other raw materials
- Suitable for high-grade livestock and aquaculture feed production
- Available in small, medium, and large extruder sizes or complete units based on customer requirements
Final Pellet Production
Our fish feed production equipment can produce a variety of flower-shaped pellets. The product outlet features a frequency conversion speed control rotary cutting device with adjustable blade rotation speed to precisely control cutting speed and length.
Technical Specifications
| Model | DGP-40 | DGP-60 | DGP-70 | DGP-85 | DGP-90 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 40-50 | 120-150 | 200-250 | 300-350 | 400-450 |
| Main Motor (HP) | 12 | 25 | 30 | 35 | 50 |
| Feeder Motor (kW) | 0.4 | 0.4 | 0.4 | 1.5 | 1.5 |
| Cutter Motor (kW) | 0.4 | 0.4 | 0.4 | 0.55 | 0.55 |
| Screw Diameter (mm) | φ40 | φ60 | φ70 | φ80 | φ90 |
| Machine Size (m) | 1.4×1.25×1.2 | 1.47×1.12×1.25 | 2.05×1.4×1.3 | 2.15×1.5×1.3 | 2.2×2×1.35 |
| Weight (kg) | 360 | 560 | 740 | 850 | 1200 |
Packaging and Shipping
MIKIM prioritizes machine safety during transportation. Before delivery, each machine is wrapped with plastic film to prevent water, moisture, and rust, and secured with metal framing. Complete container reinforcement ensures safe transit, with MIKIM providing comprehensive support throughout the entire shipping process.
Our Services
- Detailed introduction of wet type advanced design fish food extruder machines based on client capacity requirements
- Comprehensive information sharing including detailed pictures, videos, and technical specifications
- Custom design of floating fish food extruding lines
- Assistance with suitable floating fish feed formulations
- Comprehensive instruction manuals and operational videos for machine operation
