Big Output 2 Ton Per Hour Floating Fish Feed Pellet Animal Feed Making Machine Dog Food Plant / Machinery / Production Line
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | MIKIM |
| 証明: | CE |
| モデル番号: | 65,70,75,85,95,120,136 |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | $1500.00 - 9500.00/ Set |
| パッケージの詳細: | 木製輸出パッケージで梱包またはコンテナで積み込み |
| 受渡し時間: | 7～10営業日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 月300セット |
|
詳細情報 |
|||
| 色: | 銀 | 適用材質: | ペットフード原料（コーン、肉粉、魚粉など） |
|---|---|---|---|
| 力: | 37kW | 販売サービス後: | フルライフ |
| 材料: | ステンレス鋼 | 機械のサイズ: | 2*2.8*1.2 |
| ハイライト: | 2 ton per hour floating fish feed machine,dog food production line machinery,animal feed pellet making machine |
||
製品の説明
Our advanced pet food processing equipment is designed for efficient production of dog food, animal feed, fish feed, and poultry feed with superior quality and reliability.
- Siemens Motor for reliable power and performance
- Stainless Steel construction for durability and hygiene
- Frequency changer control for easy operation and automation
- Professional installation by our experienced engineers
- 12-month comprehensive guarantee period
- Multi-functional design capable of producing various snack types with interchangeable die heads and models

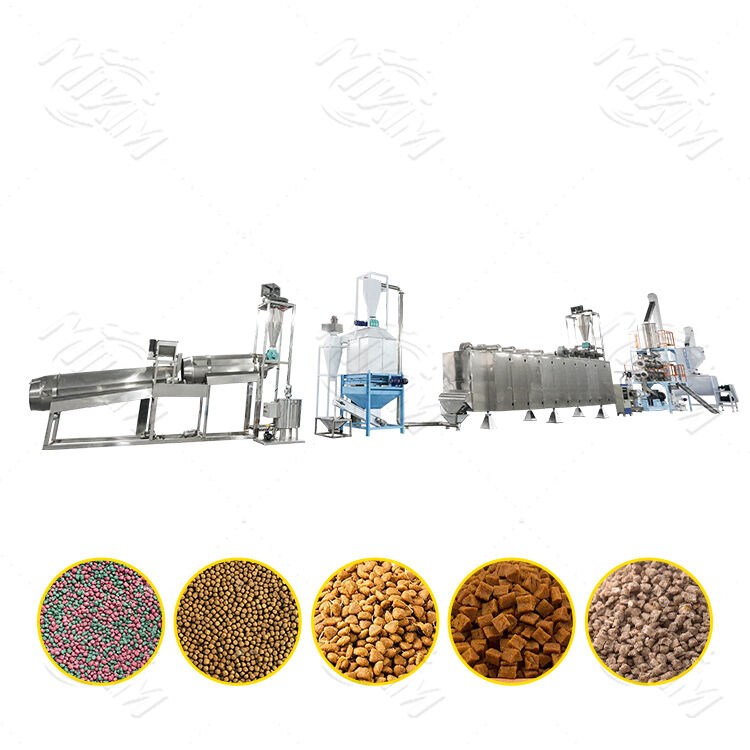

Mixer → Screw conveyor → Twin-screw extruder → Air conveyor → Dryer → Flavoring Line → Cooling machine
- Raw materials including cereal flour, vegetable proteins, minerals, vitamins, and optionally meat or fish flour are processed
- Dry ingredients enter the pre-conditioner for steam hydration with counter-rotary twin shaft blending for optimal mixing
- Partial gelatinization of starches and texturing of polymers occurs during preconditioning
- The mixture feeds into the twin-screw extruder with precise control of shearing, temperature, pressure, moisture, and residence times
- Liquids or steam injection through barrel ports with optional degassing via vent-stuffer
- Granules are shaped through the die, dried to 8-10% moisture, coated with flavoring and fat, then cooled and packaged
| Model (Electric) | Capacity (kg/h) | Main Power | Cutting Blade Power | Cutting Power | Modulated Power |
|---|---|---|---|---|---|
| 65 | 250 - 300 | 22KW | 1.5KW | 1.5KW | 3KW |
| 70 | 500 - 600 | 45KW | 1.5KW | 1.5KW | 3KW |
| 75 | 800 - 1000 | 55KW | 1.5KW | 1.5KW | 3KW |
| 85 | 1200 - 1500 | 90KW | 3KW | 2.2KW | 5.5KW |
| 95 | 2000 - 2500 | 110KW | 3KW | 3KW | 11KW |
| 120 | 3000 - 4000 | 160KW | 5.5KW | 3KW | 15 + 7.5KW |
| 136 | 5000 - 6000 | 200KW | 7.5KW | 5.5KW | 22 + 7.5KW |
Mikim Machinery is a high-tech enterprise integrating scientific research, design, manufacture, installation and commissioning, and after-sales service. With 35 years dedicated to the feed machinery industry, we have passed numerous certifications including CE and ISO. Our expertise spans two main fields: feed pellet machine production lines (hammer mill-mixer-conveyor-feed pellet machine-cooling & vibration system-packing and sealing) and feed extruder production lines (mixer-twin screw extruder machine-dryer-drum seasoning machine-cooling towers-packing machine). We produce high-quality, competitively priced equipment exported worldwide, enjoying an excellent reputation with comprehensive after-sales service to solve all customer problems.
