Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine

商品の詳細:

起源の場所: 中国
ブランド名: MIKIM
証明: CE
モデル番号: DGP40、DGP60、DGP70、DGP80、DGP90、DGP100、DGP120、DGP135、DGP160、DGP200

お支払配送条件:

最小注文数量: 1セット
価格: $1500.00 - 9500.00/ Set
パッケージの詳細: 木製輸出パッケージで梱包またはコンテナで積み込み
受渡し時間: 7～10営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 月300セット
ベストプライス 連絡先

詳細情報
使用法: ドライペットフード 状態: 新しい
色: 青 容量: 40～500kg/h
カスタムオーダー: 押し出し マニュアル: 英語版
力: 37kW 熱源: 電気
アフターサービス: フルライフ スペアパーツ: Garanteeの時間に自由に提供されます

製品の説明

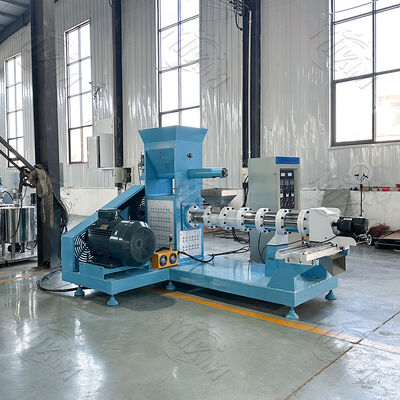

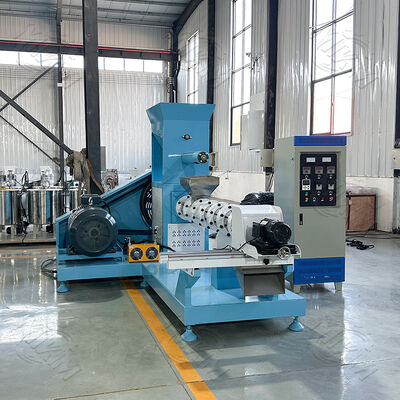

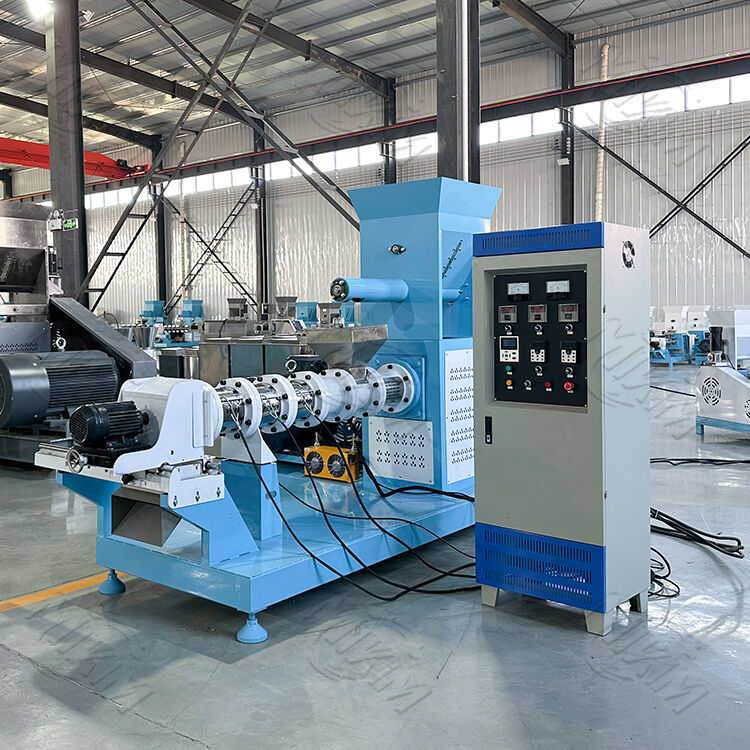

Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine
Product Overview

DGP Series floating fish feed pellet extruder machine is specialized pellet feed extrusion equipment designed for producing floating fish food, cat food, dog food, and other pet feed. The machine can produce various patterns with customizable molds according to specific requirements.

Key Features:

  • Frequency conversion speed control rotary cutting device for adjustable pellet length
  • Processes corn, soybean, animal scraps and other raw materials directly
  • Suitable for dogs, cats, fish, birds, rabbits, shrimps, and other animals
  • Handles powder materials directly; granular materials require pre-crushing to under 3mm
  • Optimal raw material moisture content: less than 30%
Production Process Characteristics
  1. Mixing Machine: Put well-proportioned raw materials and water into mixer, stir quickly and evenly
  2. Feed Extruder: Transfer mixed materials to feeding hopper, activate blanking device, temperature control, and cutter for extrusion
  3. Collection: Place container under discharge port to collect semi-finished pellets
  4. Stainless Steel Dryer: Transfer semi-finished pellets to hot air dryer for even drying
  5. Anise Seasoning Machine: Add well-proportioned animal fat for tumbling seasoning
  6. Finished Product: After seasoning completion, pour out particles as final product
Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 0 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 1 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 2 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 3
Technical Specifications
Model Capacity Power Feed Power Pellet Size Cut Power Dimension
DGP-4040-60kg/h7.5kw0.4kw1-12 mm0.4kw1.25*1.03*1.3m
DGP-5060-80kg/h11kw0.4kw1-12 mm0.4kw1.28*1.03*1.2m
DGP-60100-150kg/h15kw0.4kw1-12 mm0.4kw1.45*0.95*1.5m
DGP-70180-250kg/h18.5kw0.4kw1-12 mm0.4kw1.6*1.4*1.45m
DGP-80300-350kg/h22kw0.4kw1-12 mm0.6kw1.87*1.4*1.5m
DGP-100400-450kg/h37kw1.1kw1-12 mm0.6kw1.7*2.3*1.4m
DGP-120500-700kg/h55kw1.1kw1-12 mm1.5kw2.2*2.9*1.2m
DGP-135800-1000kg/h75kw1.1kw1-12 mm2.2kw2.25*3.1*1.37m
DGP-1601200-1500kg/h90kw1.5kw1-12 mm2.2kw2.2*3.15*1.37m
DGP-2001800-2000kg/h132kw1.5kw1-12 mm3.0kw2.3*3.45*1.65m
Raw Material Requirements

Compatible Materials: Wheat meal, maize powder, soybean meal, cottonseed meal, fish meal, bone meal, corn meal, meat meal, etc.

  • Moisture content: 20%-25%
  • Oil content: ≤10%
  • Starch content: ≥30%
  • Material type: Powder form
Final Products

Fish feed, dog food, shrimp feed, frog feed, poultry feed, fox feed, textured soybean protein, and various animal feeds.

Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 4 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 5
Complete Production Line

Mixer Machine → Fish Feed Extruder → Conveyor → Dryer Machine → Cooling Conveyor → Seasoning Machine → Packing Machine

Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 6

Production Line Functionality:

  • Processes various grains as raw materials to produce shaped puffed food
  • Fully automatic production capability
  • Raw materials: Corn flour, wheat flour, rice flour, bean flour with added nutrients
  • Produces corn puff snacks, dog food, cat food, shrimp feed, fish feed, poultry feed
  • Capacity ranges: 100-150 kg/h to 1 ton/h
Machine Variants
Wet-type Floating Fish Feed Pellet Extruder

Equipped with boiler for continuous hot steam supply. Produces floating or sinking aqua feed for fish, shrimp, crab, loach, bullfrog, and pet feeds for cats, dogs, etc. Pellet size range: 0.9-15mm. Ideal for medium to large feed processing factories and aquaculture farms.

Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 7
Twin Screw Dog Food Extruder Machine

Comprehensive system including feeding, extrusion, rotary cutting, heating, conveying, and control systems. Materials are conveyed, sheared, mixed, heated, and matured under high temperature and pressure before extrusion. Suitable for pet feed, aquatic feed, and poultry feed production.

Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 8
Application Benefits
  • Ideal for farmers and small to medium-sized feed factories
  • Produces neatly formed, smooth pellets that float on water surface for over 12 hours
  • Prevents water pollution and reduces fish diseases through sterilization
  • Uses maize, fish powder, meat powder and food additives as main raw materials
  • Comprehensive process: mixing, extruding, roasting, and flavoring
Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 9 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 10 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 11 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 12 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 13 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 14 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 15
About Tianjin Mikim Company

Established in 1989, Tianjin Mikim is a professional manufacturer of extrusion puffing equipment. Our company has gathered industry experts with rich experience and remains committed to research and development of extrusion puffing equipment. We provide comprehensive intelligent equipment solutions to help customers achieve goals of reducing energy consumption, improving quality, and enhancing efficiency.

We specialize in commercial efficiency of extrusion puffing machinery, including twin-screw puffers, single-screw puffers, and other puffing equipment. Our focus extends to aquatic and pet food puffed feed production line research and development. Our core competitiveness lies in delivering high efficiency, superior quality, and outstanding performance through excellent puffing technology.

Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 16 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 17 Dry Type 200-5000 Kg/h Aquatic Fish Feed Pellet Mill Making Machine Floating Fish Shrimp Crab Food Extruder Machine 18
