New Coarse Mill Dry Type Fish Feed Floating Shrimp Feed Pellet Puffing Machine Feed extruder for livestock breeding
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | MIKIM |
| 証明: | CE |
| モデル番号: | DGP40、DGP60、DGP70、DGP80、DGP90、DGP100、DGP120、DGP135、DGP160、DGP200 |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | $1500.00 - 9500.00/ Set |
| パッケージの詳細: | 木製輸出パッケージで梱包またはコンテナで積み込み |
| 受渡し時間: | 7～10営業日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力: | 月300セット |
|
詳細情報 |
|||
| 応用: | 犬、猫、ペットフード、魚など、魚 | 電圧: | 380v、カスタマイズされた、顧客のニーズに応じて、380v/50hz、380v 50hz 3 相カスタマイズされた |
|---|---|---|---|
| 電力(w): | 35KW、50KW、76kw、50-300kw、4KW | 状態: | 新しい |
| 保証: | 1年、2年、1年以内、12ヶ月、24ヶ月 | 提供されるアフターサービス: | 海外での機械のサービスに対応できるエンジニア、現場での設置、試運転およびトレーニング、海外サービスセンターが利用可能、ビデオ技術サポート |
| 容量: | 100kg/h〜5000kg/h、120〜5000kg/h、150kg/h、100〜150kg/h 200〜250kg/h、100KG-----1.5T | 原材料: | 骨粉、魚粉、コーンライスウィア骨肉粉末、米粉、小麦 |
| インバータ: | デルタまたはカスタマイズされた、シーメンス ABB または中国ブランドまたはデルタにすることができます | 名前: | ドッグフード機械/ペットドッグフード機械/ペットドッグフード押出機、動物飼料ペレット生産ライン、二軸押出ドライペットドッグフード製造押出機、高品質全自動ペットフード生産ライン |
製品の説明

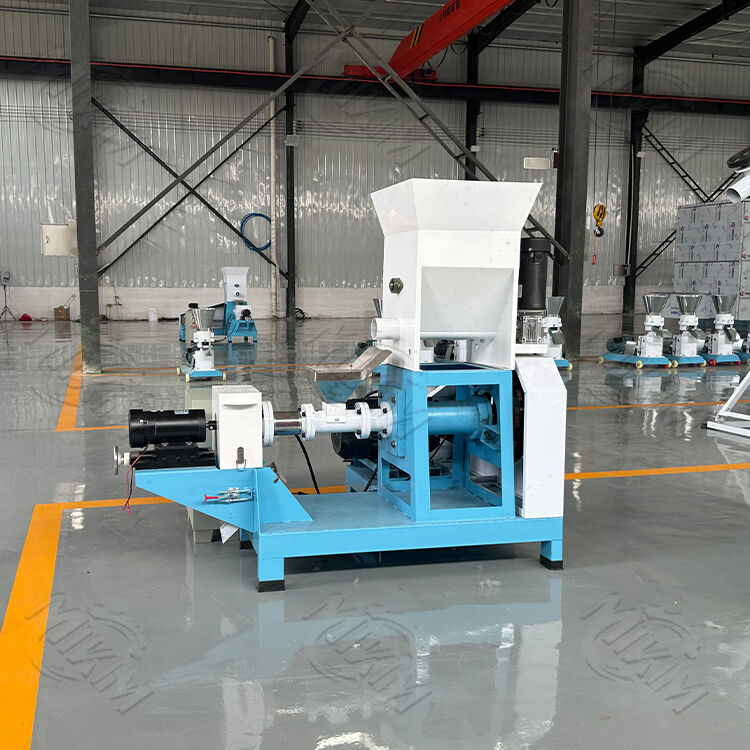

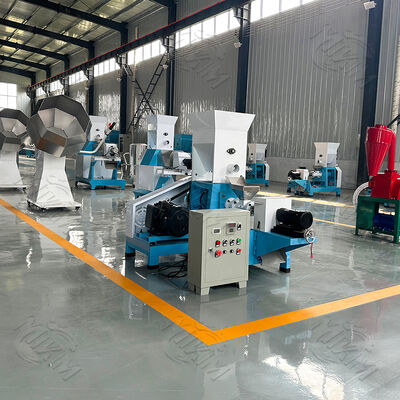

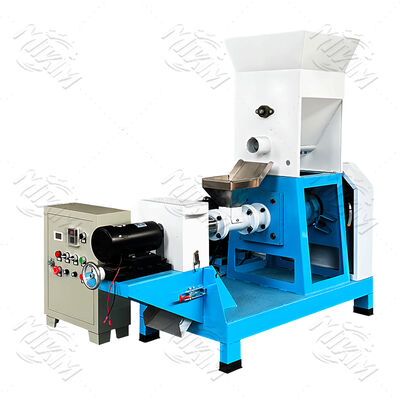

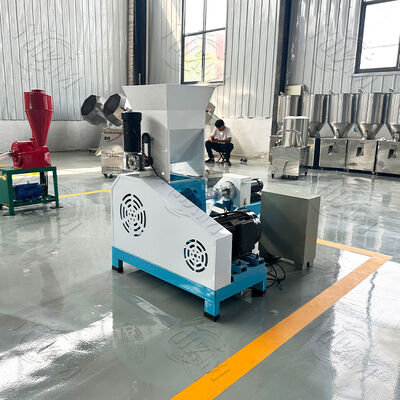

New Coarse Mill Dry Type Fish Feed Floating Shrimp Feed Pellet Puffing Machine Feed Extruder for Livestock Breeding
Dry Type Shrimp Feed Extruder Machine
- DGP series pet food making is a single screw extruder, mainly used for all kinds of poultry, pets and aquatic feed extruder
- Adapt to different production requirements, large and medium-sized feed mills can be used for raw material treatment or special feed production, such as expanded soybeans, expanded rice, expanded pet feed, aquatic feed, cat feed or other special feed
- Small feed mills or medium-sized farms can also use the expanded machine equipment as the main equipment to produce full price expanded feed for sale
- Adapt to different materials and different production conditions, extruding screw is a simple combination structure
- According to different expansion requirements, flexible composition of the corresponding extruding screw group, can adapt to different processing conditions
- Simple structure, practical. The machine structure is exquisite, easy to operate and maintain
Technical Specifications
| Model | Capacity (kg/h) | Main Motor (kw) | Feeder Motor (kw) | Cutter Motor (kw) | Screw Diameter (mm) | Machine Size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| DGP-40 | 40-50 | 5.5 | 0.4 | 0.4 | φ40 | 1.36*1.3*0.85 | 320 |
| DGP-60 | 120-150 | 15 | 0.4 | 0.4 | φ60 | 1.36*1.33*0.86 | 420 |
| DGP-70 | 200-250 | 18.5 | 0.4 | 0.4 | φ70 | 1.36*1.33*0.86 | 550 |
| DGP-80 | 300-350 | 22 | 1.5 | 0.55 | φ80 | 2.3*1.7*1.4 | 720 |
| DGP-90 | 400-450 | 30 | 1.5 | 0.55 | φ90 | 2.3*1.8*1.4 | 1100 |
| DGP-100 | 500 | 37 | 1.5 | 1.5 | φ100 | 2*2.8*1.2 | 1500 |
| DGP-120 | 600-700 | 55 | 1.5 | 1.5 | φ120 | 2.2*2.9*1.2 | 1800 |
| DGP-135 | 800-900 | 75 | 1.5 | 2.2 | φ135 | 2.2*3.1*1.37 | 2000 |
| DGP-160 | 1000-1200 | 90 | 2.2 | 2.2 | φ160 | 2.3*3.15*1.38 | 2500 |
| DGP-200 | 1800-2000 | 132 | 3 | 3 | φ200 | 2.35*3.45*1.65 | 3200 |
Customizable Molds
Triangle Dog Food
Ball Fish Feed
Heart-shaped Dog Food
Fishing Bait
Bone Shaped Dog Food
Cylindrical Turtle Food
Product Features

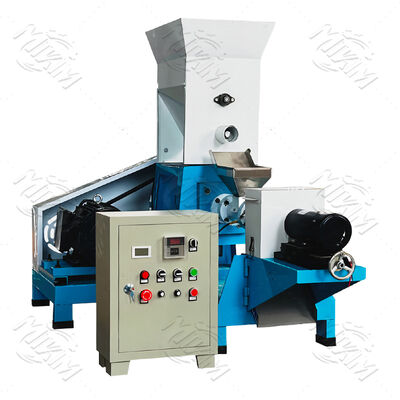

Expander Control Panel
One-click start operation is simple, safe and durable
Pure Copper Movement
Strong power, high efficiency, long service life
Cut and Discharge System
Adjustable speed cutting motor meets production demand
Omnidirectional Stirring
Screw feed with automatic uniform blanking
Frequently Asked Questions
What is a Dry Fish Feed Extruder?
A Dry Fish Feed Extruder is a piece of equipment used for processing animal feeds. It alters the physical and chemical properties of feed ingredients through high-temperature, high-pressure conditions and mechanical shear forces to enhance their solubility, digestibility, and texture, thereby improving feed utilization by animals.
How does an animal feed extruder machine work?
An animal feed extruder machine works by pushing feed ingredients into an extrusion screw and then subjecting them to high temperatures and pressures to extrude the materials. During extrusion, the materials expand and generate heat, causing starch gelatinization and protein denaturation, thereby increasing their solubility and digestibility.
What are the advantages of using a Pet food extruder machine?
Pet food extruder machines can improve the texture, nutritional value, and stability of feed. They can eliminate some harmful microorganisms and anti-nutritional factors, enhance animals' utilization of feed, and reduce feed wastage.
What are the applications of dog food maker machines?
Dog food maker machines are widely used in the production of feed for poultry, livestock, and aquaculture. They can also be used in the manufacturing of pet food and other industrial processing applications.
What should be considered in the maintenance of a small floating fish feed pellet extruder mill?
Maintenance of a small floating fish feed pellet extruder mill is crucial to ensure its proper functioning. Regular cleaning and inspection of components, ensuring proper lubrication systems, and following manufacturer-recommended maintenance schedules are important.
Why Choose Our Machines
- Professional Chinese Food Machines Manufacturer since 1989
- Certified by Bureau Veritas Inspection Institution
- 100% quality control inspection before shipment
- Best quality and service with competitive pricing
- 12-month warranty with 24-hour technical support
About Tianjin Mikim Company
Established in 1989, Tianjin Mikim is a professional manufacturer of extrusion puffing equipment. Our company has gathered industry experts with rich experience and remains committed to research and development of extrusion puffing equipment. We provide comprehensive intelligent equipment solutions to help customers achieve goals of reducing energy consumption, improving quality, and enhancing efficiency.
We specialize in commercial efficiency of extrusion puffing machinery, including twin-screw puffers, single-screw puffers, and other puffing equipment. Our focus extends to aquatic and pet food puffed feed production line research and development. Our core competitiveness lies in delivering high efficiency, superior quality, and outstanding performance through excellent puffing technology.
